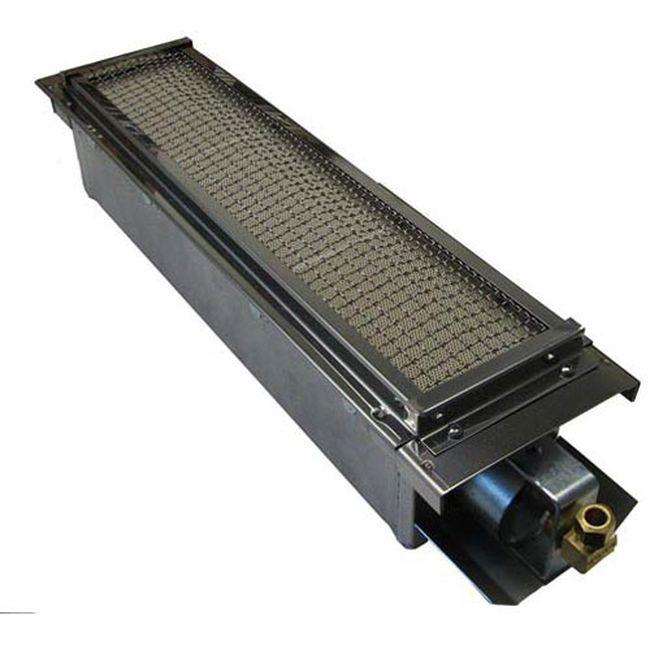

Imperial IMP1041 Infrared Burner with Wire Mesh Screen, 5 x 18-7/8 in OD

Infrared burner, w/ wire mesh screen. 5" x 18-7/8" od, 4" x 16-5/16" burner, overall length 19-3/4" including venturi, 4" x 16-1/4" box only, orifice holder 3/8cct x #48 orifice hole- threaded into bracket on burner, 17,000 btu (for nat gas only) for lp, model of unit is needed in order to determine orifice size. garland broiler ircm-24 imperial broiler icma/icfb(old style) montague cheesemelter series mcm 24-72 us range roiler/cheesemelter irc96a, icma(24,48,72,96,120,144).

Fits Model Imperial: ICMA-60, ICMA-72

Replaces Part Number GARLAND: 222011-1

Replaces Part Number IMPERIAL: 1041

Replaces Part Number MONTAGUE: 01217-3, 01217-9, 1-9, 1217-3, 1217-9
